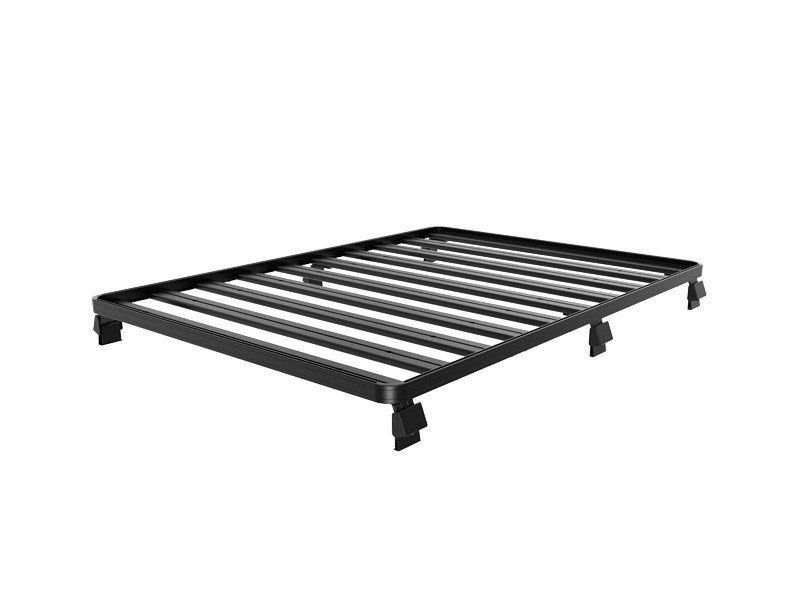

Land Cruiser 80 Slimline II Roof Rack Kit

Consisting of:

2 x LASS027 - Leg Spacer 6mm (Pair) - by Front Runner
4 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner
1 x RRSTG10 - Slimline II Tray - 1345mm(W) X 1964mm(L) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 32kg (71lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")

Shipping Weight:

Weight 37.7kg (82.9lbs)

Installation Instructions for LASS102

Installation Instructions for RRSTG10

*A PDF viewer is required to view the fitting instructions.

In the event that a product is defective, please contact the FRONT RUNNER reseller you have purchased the Front Runner product from.

All FRONT RUNNER products being returned for warranty, must include a copy of the invoice for the original sale. Warranty approvals will not be granted if an original invoice or copy of an invoice is not provided.

Subject to the limitations and exclusions described in this warranty, FRONT RUNNER will remedy defects in materials or workmanship by repairing or replacing, at its option, a defective product without charge for parts or labor. In addition, FRONT RUNNER may elect, at its option, not to repair or replace a defective product but rather issue to a purchaser a refund equal to the purchase price paid for the product or a credit to be used toward the purchase of a new FRONT RUNNER product.

This warranty excludes problems caused by normal wear and tear including, but not limited to, scratches, dents, tears, or aesthetic oxidation of surfaces, natural breakdown of colors and materials over extended time and use, commercial use, accidents, or unlawful vehicle operation.

No warranty is given for defects resulting from conditions beyond FRONT RUNNER’s control including, but not limited to, modifications or repairs not performed or authorized by FRONT RUNNER, misuse, overloading, or failure to assemble, install or use the product in accordance with FRONT RUNNER’s written instructions or guidelines included with the product or made available to the purchaser originally.

• All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.
• These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).
